90067 – Billet Pump Mount Double O’ring 63 mm ID
Product Code: 90067
£101.50
Specification
| Name | Value |
|---|---|
| Weight | |
| Materials | Aluminium 6082 |
| Fitment | 63mm ID |
| Finish | Electro-less Nickel Coated |
All dimensions are approximate. Contact us if you need critical information.
Description

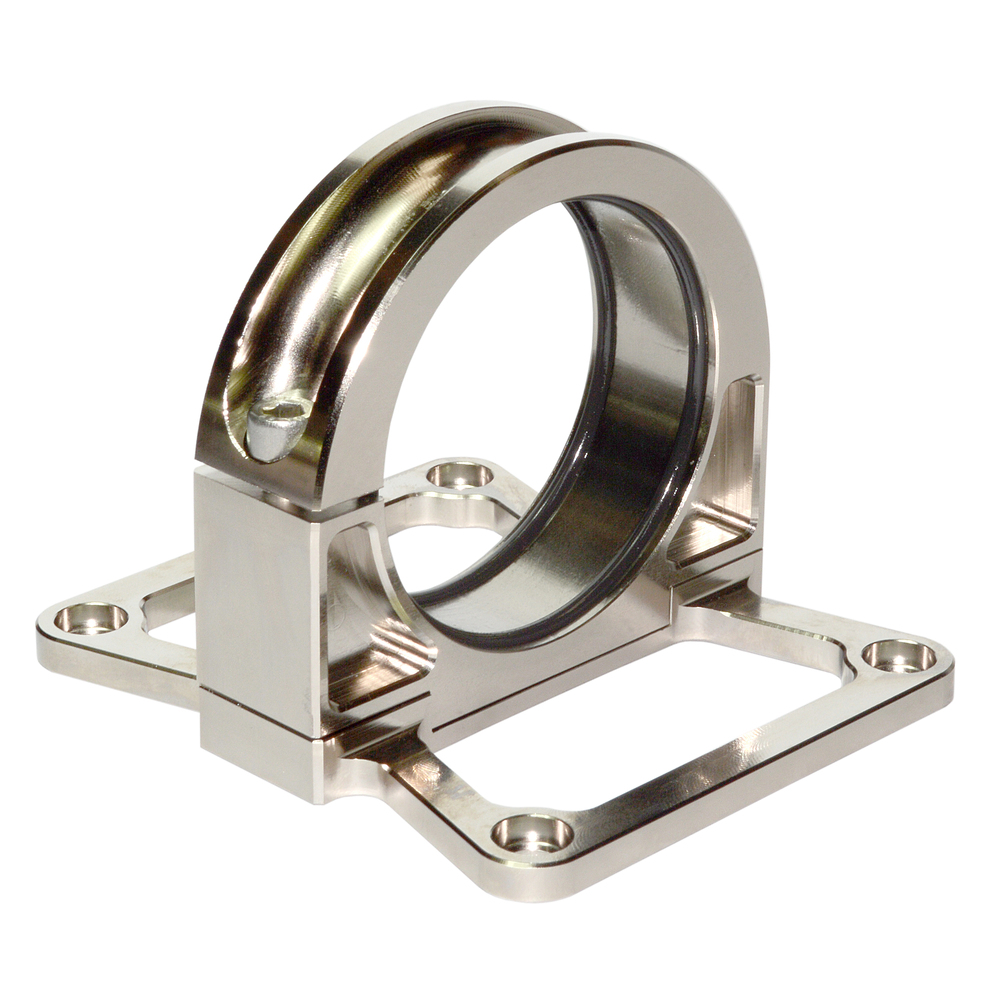

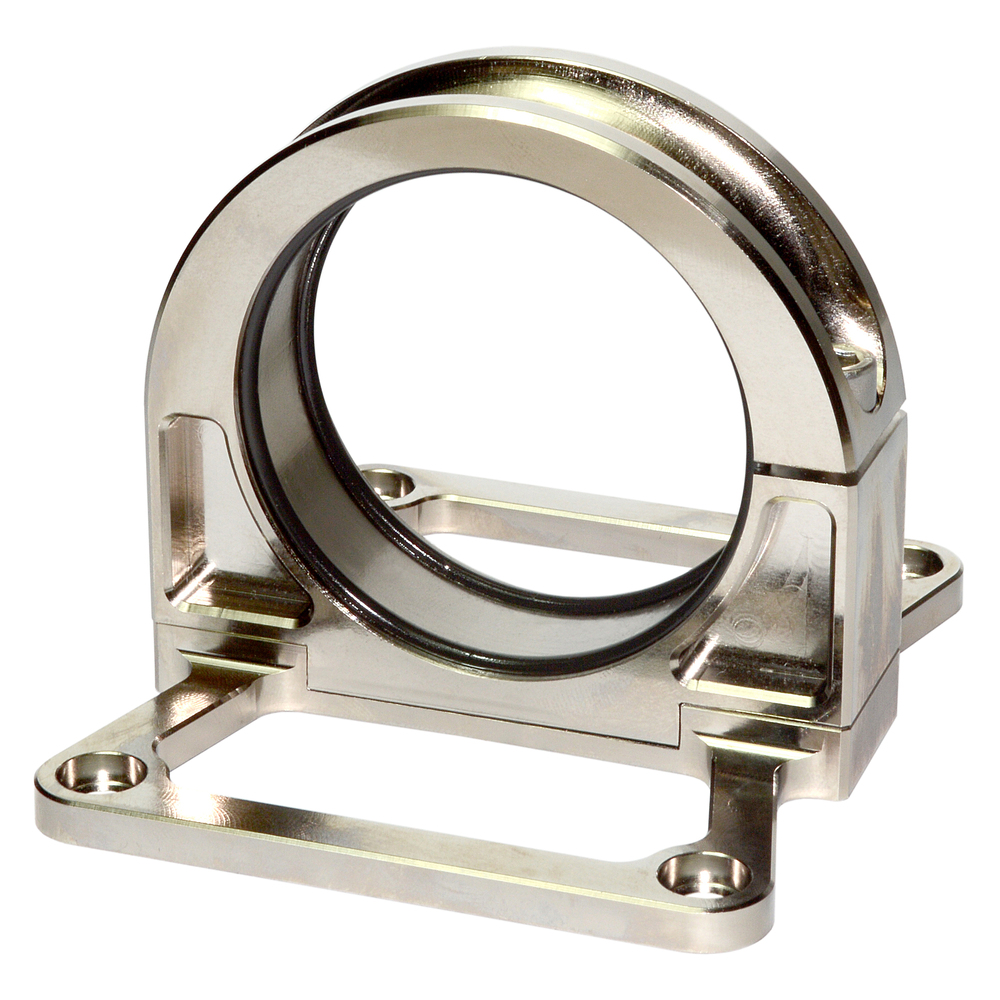

Billet aluminium fuel pump or fuel filter bracket, features twin o rings to dampen vibration. When ordered the frame allows the bracket to be easily removed leaving the frame bolted to the vehicle for less hassle. Both Mount and Frame are Electro-Less Nickel Coated. Ladder frame (90085), Two Stainless Steel M6 X 45mm Hex socket cap screw Din 912 A4 ST/ST, M6 Schnorr washers and two 63mm x 3mm o rings are included in the price.
90067 Billet Pump Mount 116.03 KB
Application Hints
Use o ring grease when inserting fuel pump or fuel filter.
Make sure all bolts are tightened before use.
Professional installation is highly recommended.
