12 Litre Fuel Surge Tank With Cobra Pumps
Product Code:
Specification
| Name | Value |
|---|---|
| Flow | |
| Current Draw | |
| Pressure | 2-10 psi Internal Pot Pressure |
| Inlet Fitting | 3/4 - 16 UNJF (AN8) |
| Outlet Fitting | 3/4 - 16 UNJF (AN8)/ 7/8 - 14 UNJF (AN10) |
| Impeller Design | Twin screw |
| Weight |
Description

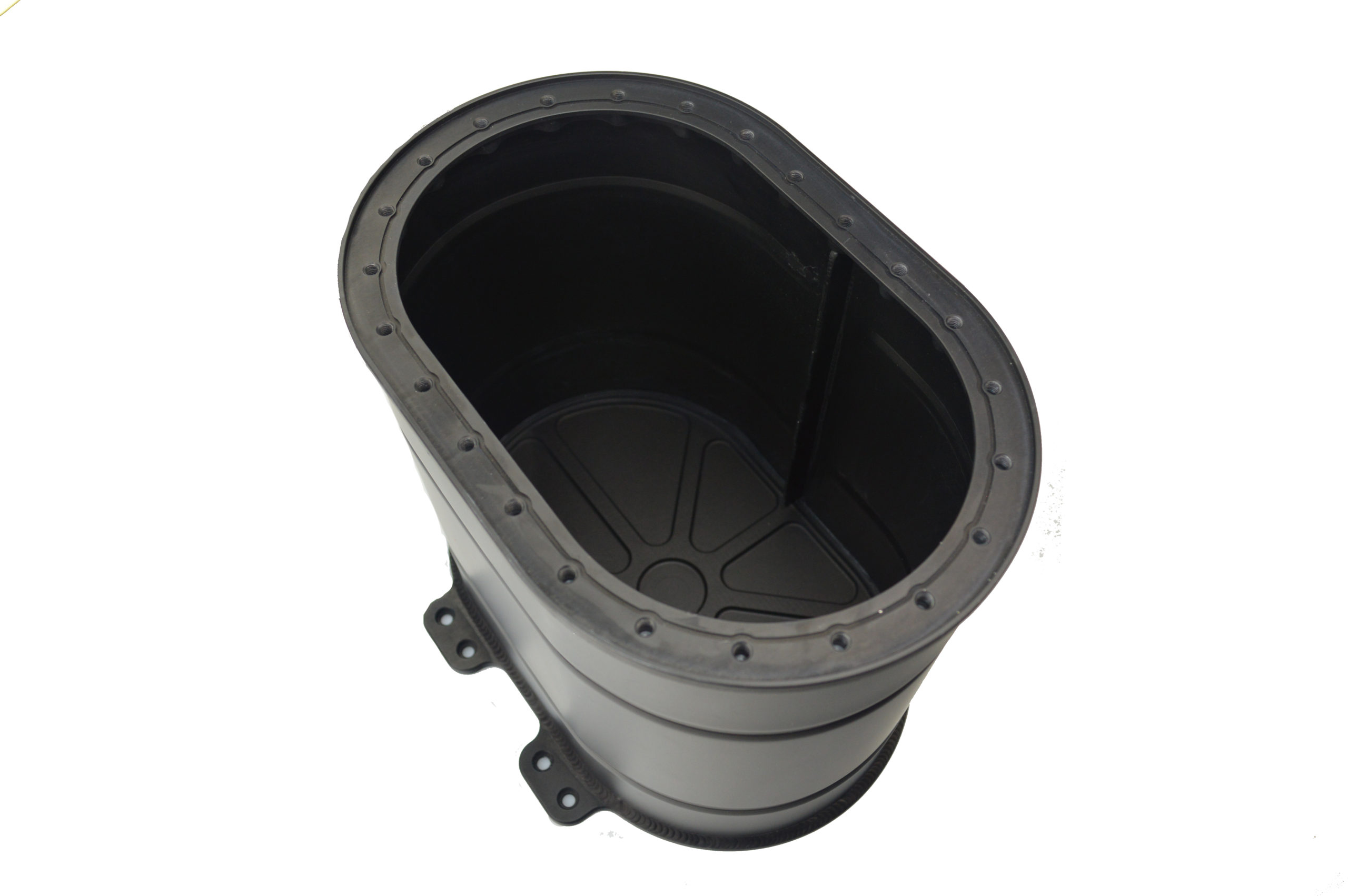

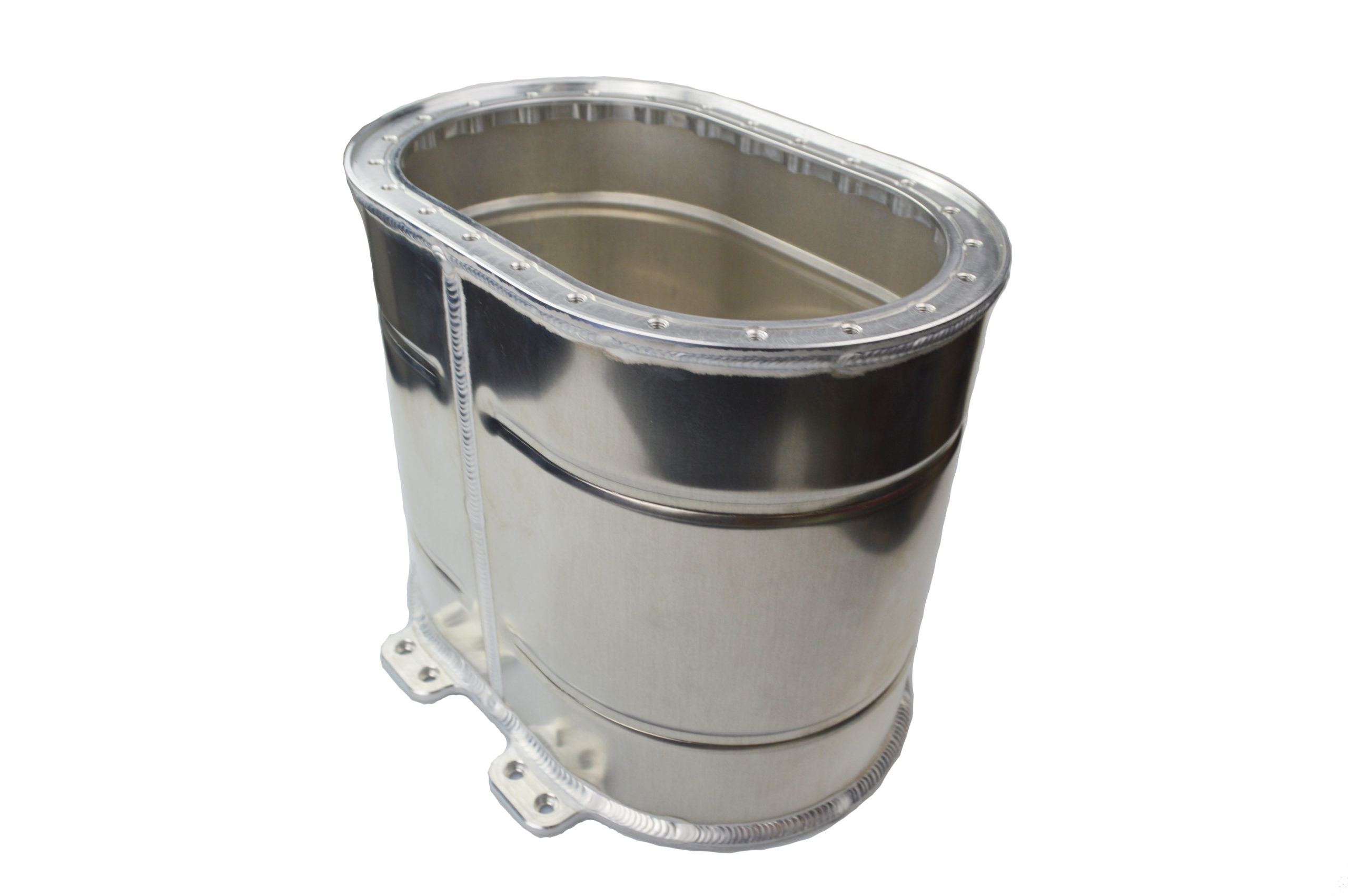

This Fuel Surge Tank has been designed to be light weight but also perform in some of the most demanding applications to prevent fuel starvation due to fuel surge or limited tank baffling. The Tank has a capacity of 12 litres and weighs only 1.85Kg on its own, It takes a standard 6 x 10 bolt pattern cover plate and seals on a Viton O’ring to make sure it is completely sealed. Added with either a dual cobra set up or a single cobra pump setup this system is not only seriously light weight (dual cobra FM60500 setup = 4.3Kg dry/single cobra FM60500 setup = 3.3Kg dry) but also stands out as one of the most efficient systems on the market.

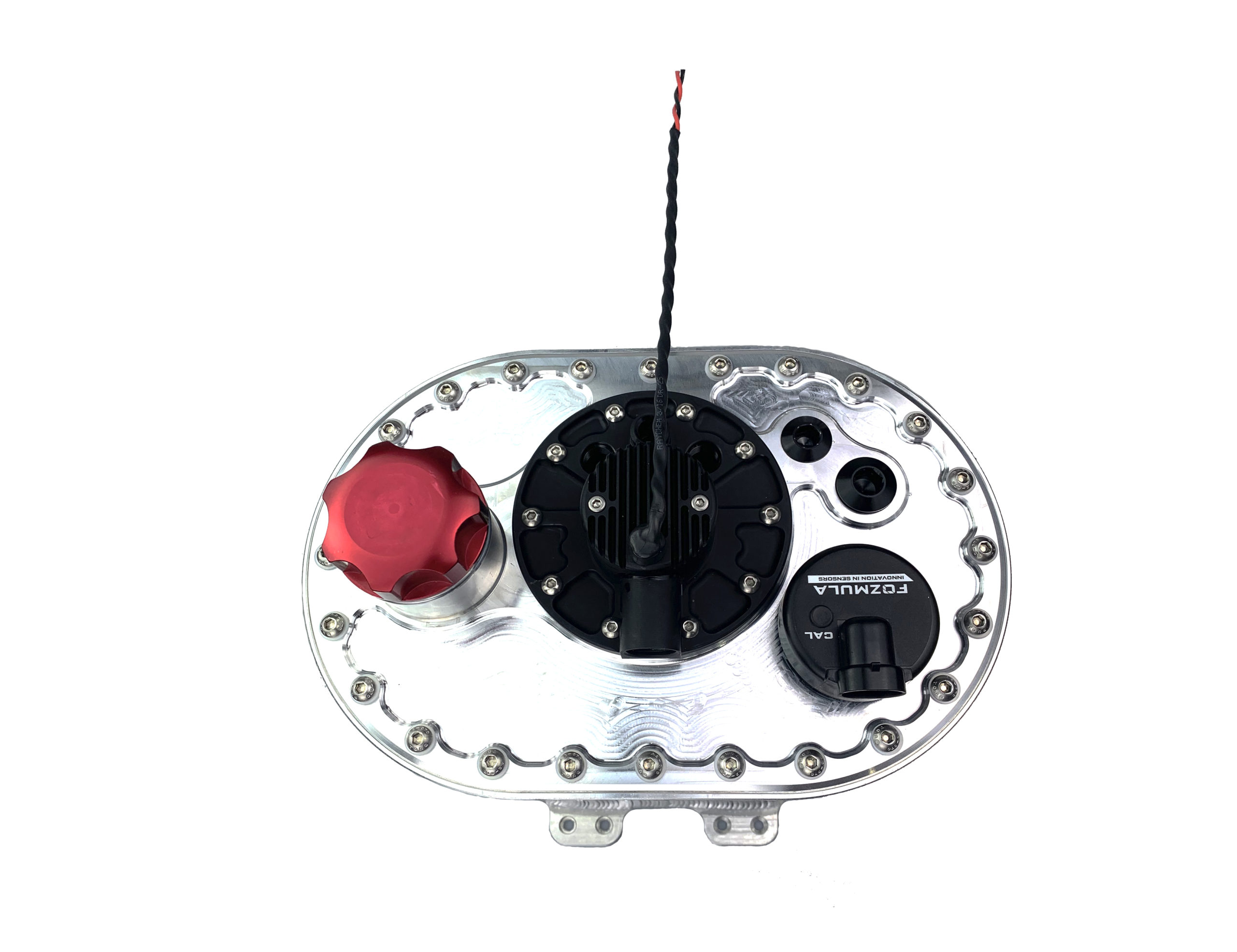

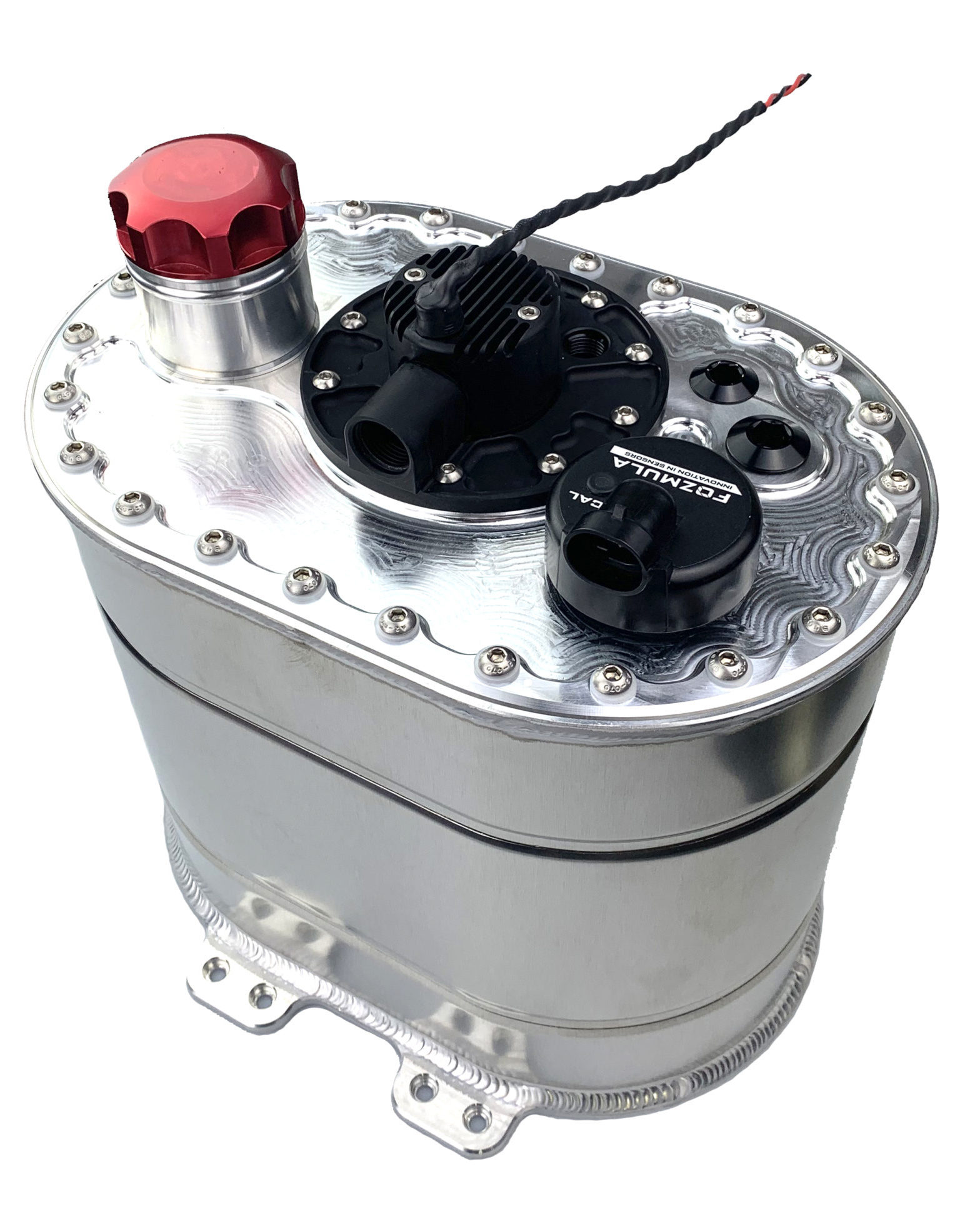

The single pump top plate layout has one 2 1/4″ filler neck with screw on cap, one AN8 port, one AN10 port, one 1/2″ BSP threaded port to suit Fozmula level sensor and three AN6 Ports as part of the FM top flange.

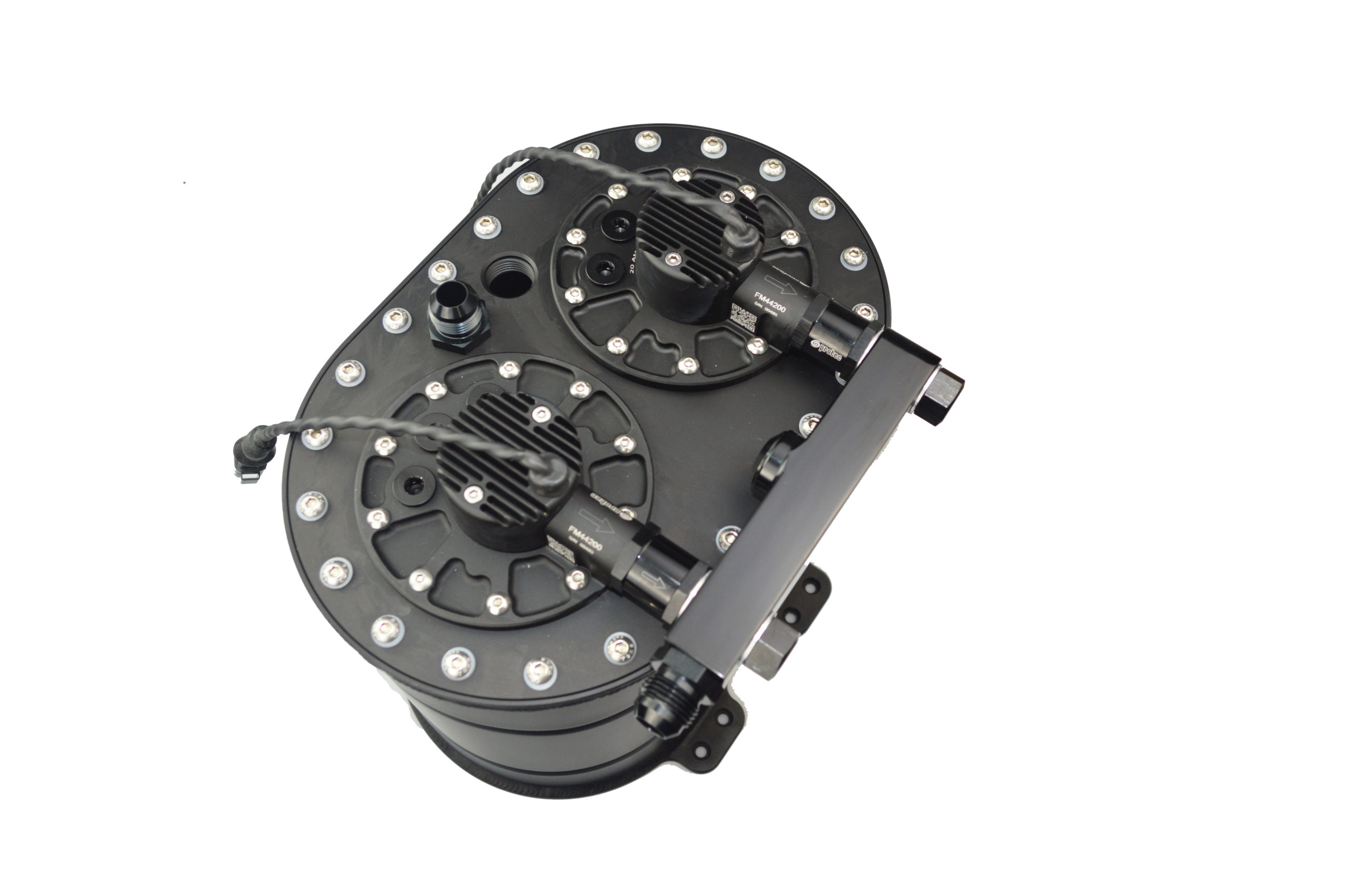

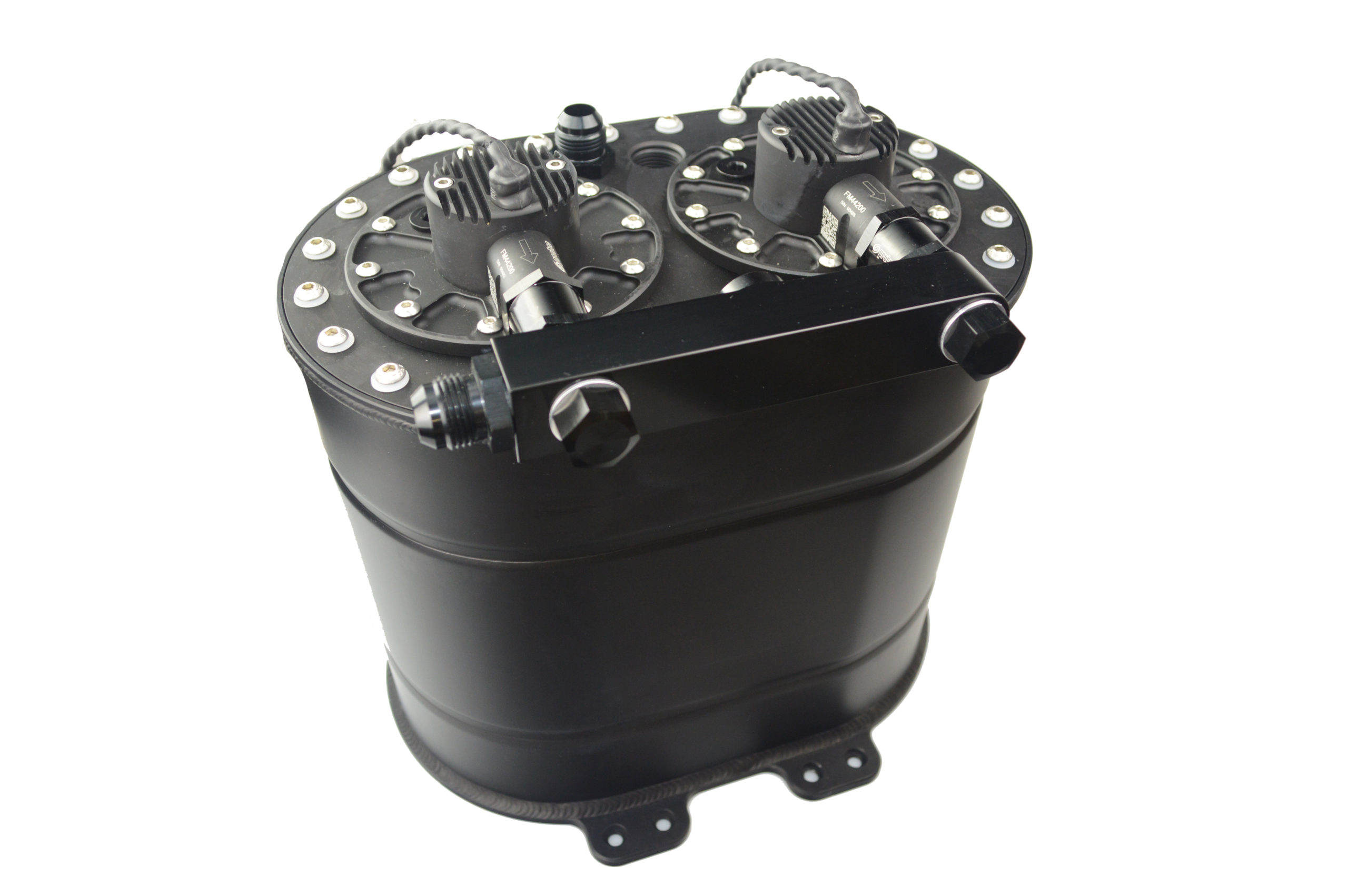

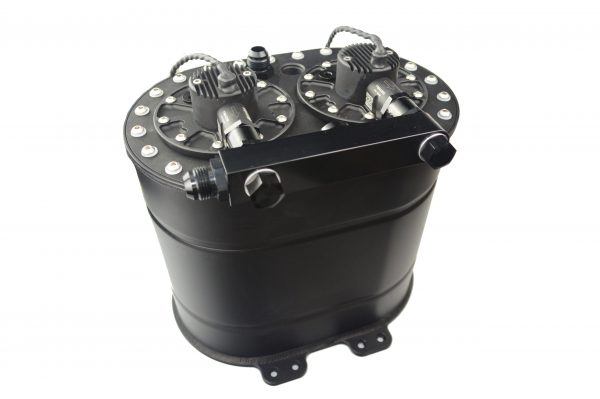

The dual pump top plate layout has two FM pump top flanges with six AN6 ports and two AN10 ports.
All come with 65 micron pre-filter on the pump.
Application Hints
Ensure fuel is always clean and filtered.
Ensure all fittings are tight before use.
Check filter and replace if required.
