11925, High Flow Brushless Cobra Compact with AN6 Male Outlet (Kit)

Product Code: 11925

Cost

£471.25£481.25

Specification

Name Value
Flow 550 ltr/hr @ 3 bar
Current Draw
Pressure 8 Bar Max Pressure
Inlet Fitting 12mm
Outlet Fitting AN6 (JIC) Male
Impeller Design Turbine Pump Mechanism
Weight

Description

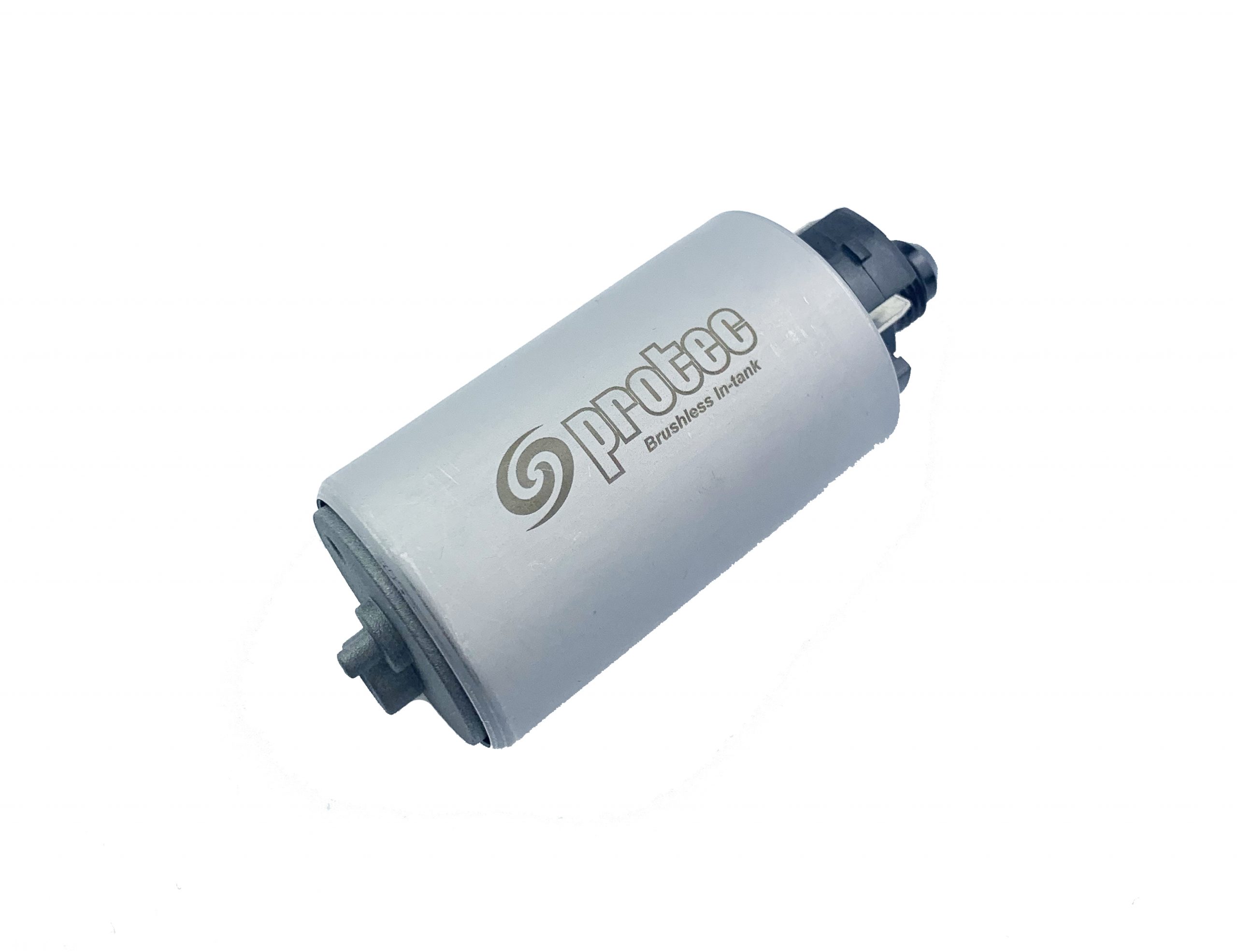

The High Flow Brushless Cobra Compact fuel pump has been engineered to provide precise fuel flow for the most demanding applications. It is Suitable for use with Ethanol, Methanol and petrol (gasoline) the Cobra Compact pump is able to deliver fuel at higher pressures while using less amps. The Cobra Compact is also able to offer a brushless system to the customer for a lower price than other brushless pumps in our range. It is also a direct replacement for various OEM fuel systems meaning no need to change any of the OEM fittings and baskets inside the tank.

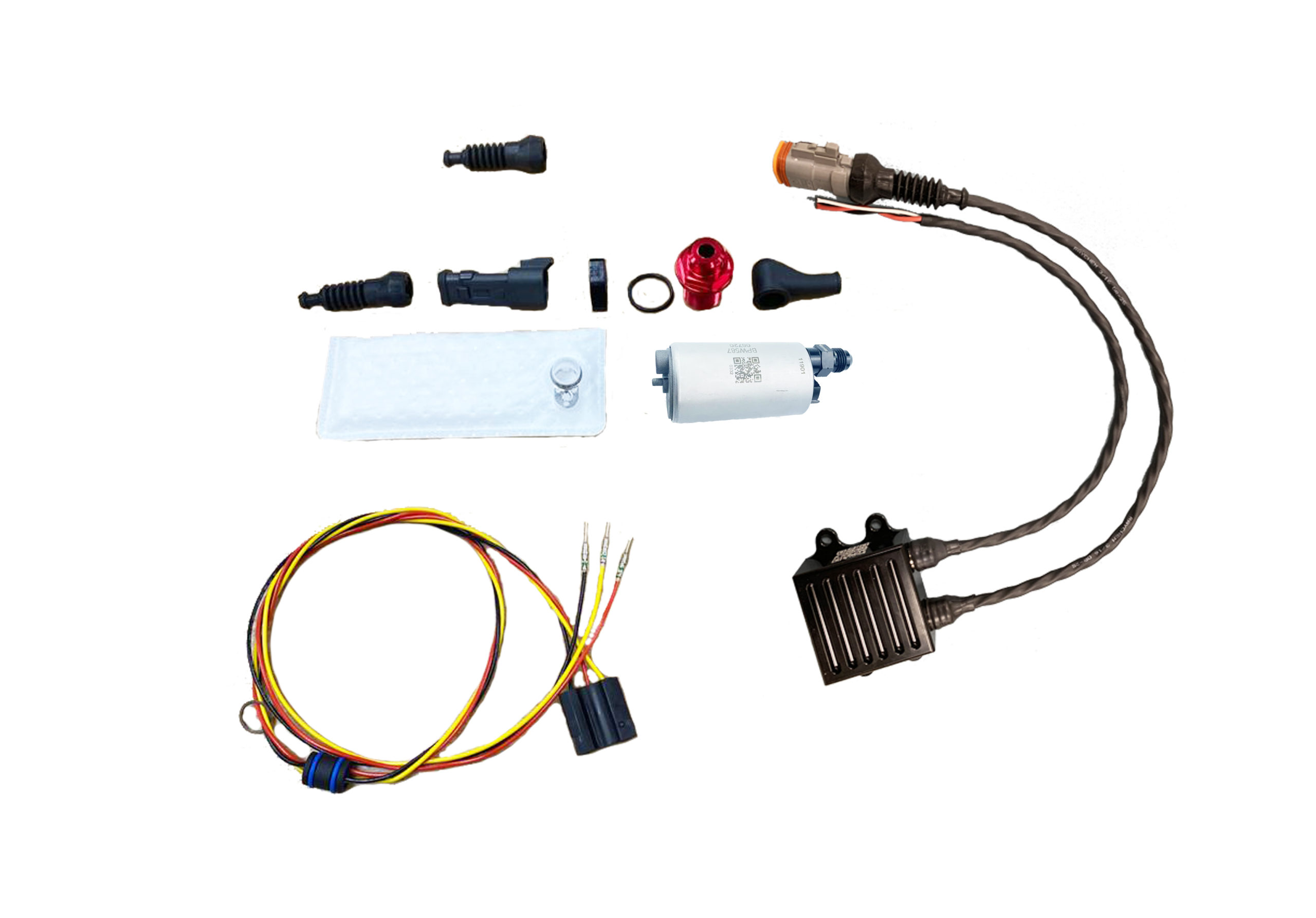

Full kit with Mil-spec hermetic (90047) and brushless controller (1644x) please see part number options for desired controller.



11925 comes with standard on/off controller (16440)

11925-DS comes with Dual speed controller (16441)

11925-PWM comes with PWM controller (16442)



(BRUSHLESS CONTROLLER REQUIRED TO POWER PUMP)

Application Hints

Ensure fuel is always clean and filtered.

Ensure all fittings are tight before use.

Check filter and replace if required.

‘Efficiency is Power, Power is Everything’
