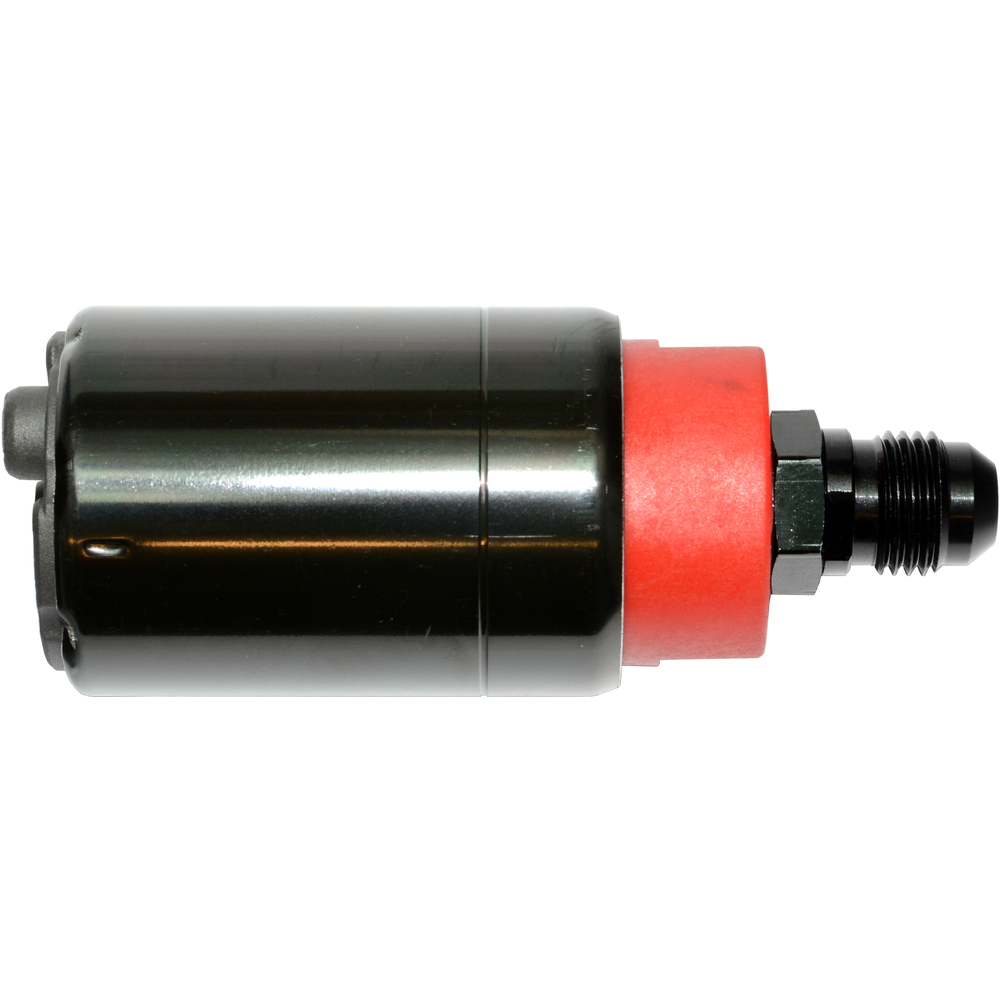

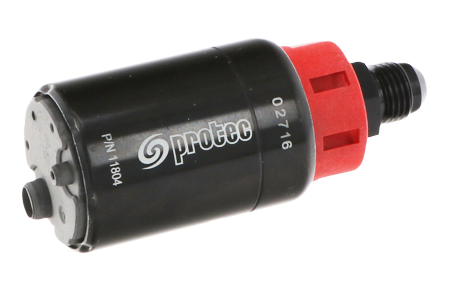

11804 – Low Pressure Lift Pump, Nas240 , c/w fitting kit
Product Code: 11804
£106.61
Specification
| Name | Value |
|---|---|
| Flow | 45 US gal or 185 ltr/hr @ 0.5 bar (10 psi)/hr @ 10psi |
| Weight | |
| External Materials | Black Steel |
| Inlet Fitting | 11mm OD |
| Outlet Fitting | Male AN6 (JIC) |
| Impeller Design | Composite |
| Terminal Post | 2 Pin Supplied |
| Min Voltage Input | 6 vdc |
| Max Voltage Input | 18 vdc |
| Current Draw | 3.6 amps (13.8vdc) |
Description
NASCAR Approved lift pump capable of transferring 45 US gal/hr @ 10psi and can be used in pulse modulated applications.
It is also compatible with carburetor applications as long as a by-pass regulator is used.
Ethanol fuel can also be used with this pump but will have a reduced run-time on the pump.
Low Pressure Lift Pump, Nas240 , c/w fitting kit, 11804 110.65 KB
Application Hints
Ensure fuel is always clean and filtered.
Check filter and replace as required.
Compatible with all regular fuels.
